Cobblestone Farms Custom Home

Completed in May 2012 this home heating and cooling system has many options. Vertical loop geothermal, in-floor radiant heat, air handlers for air conditioning and a backup hi-efficient boiler.

carrier furnace bryant furnace air conditioner furnace

Finished Mechanical shows the attention to detail that CMR Mechanical shows on all projects big or small.

carrier furnace bryant furnace air conditioner furnace

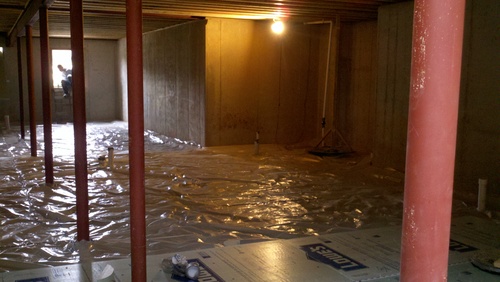

Project started with 2" Foam insulation under the basement.

carrier furnace bryant furnace air conditioner furnace

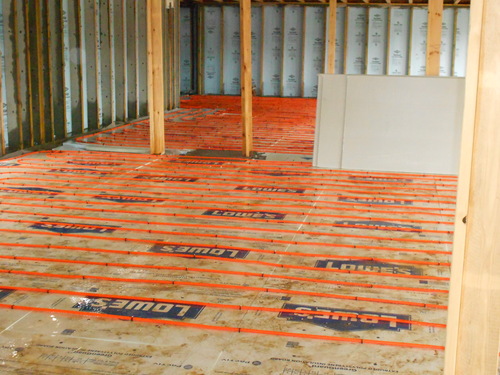

Pex tubing is positioned on the insulation for maximum efficiency and heat transfer.

carrier furnace bryant furnace air conditioner furnace

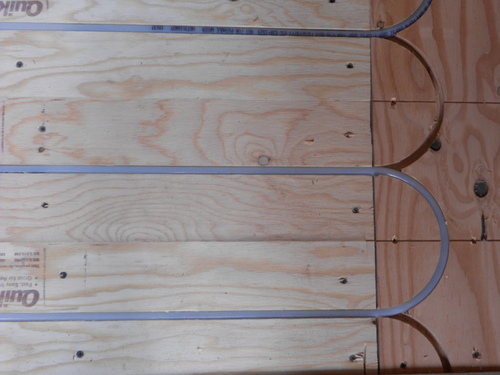

Upstairs pex tubing is installed in panels that transfer heat to hardwood flooring

carrier furnace bryant furnace air conditioner furnace

In the mechanical room piping begins on the boiler system. The boiler provided heat during construction and serves as a back up source of heat for domestic hot water and for the home.

carrier furnace bryant furnace air conditioner furnace

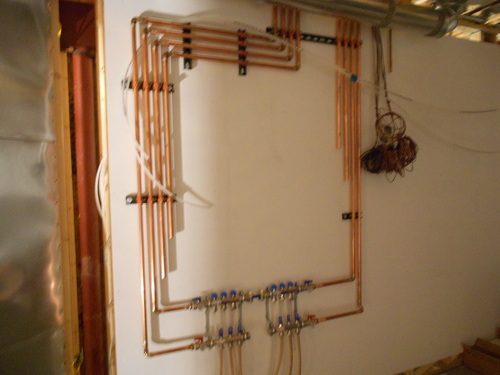

The beginning of piping for the heating system. the home has several zones, each zone serves a different area of the home with different flooring materials.

carrier furnace bryant furnace air conditioner furnace

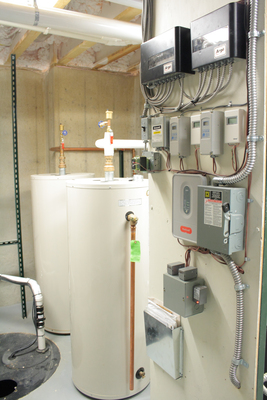

Buffer (water) tanks are installed for storage of hot water. A chilled water tank is also utilized for storage of cold water.

carrier furnace bryant furnace air conditioner furnace

Air Handlers distribute cool conditioned air throughout the home on those hot summer days.

ductless air conditioner mini split air conditioning heating ac

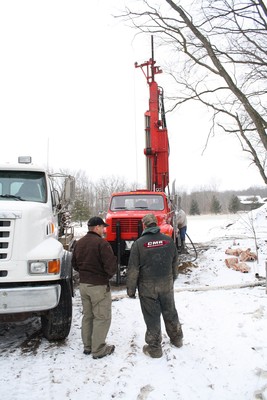

Vertical wells for the geothermal system are drilled. Geothermal is by far the most economical method of heating and cooling this home.

carrier furnace bryant furnace air conditioner

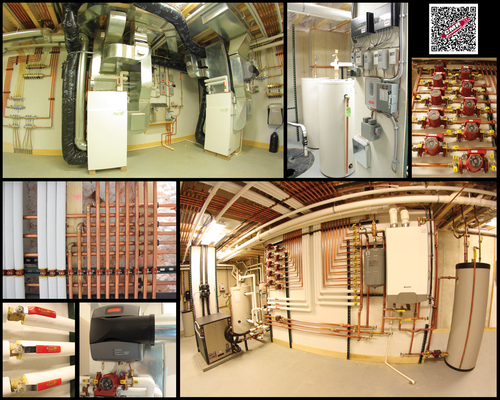

A collage of the finished home heating and cooling system.
